The YJ interior cage kit is finally available! Due to the age in these vehicles (rust) we have added a little extra in our cage kit to ensure your safety. Our kit is complete and includes seat mounting tubes and frame tie-ins. All the floor plates, bushings, and seat tabs are included with pre-bent and notched tubing. All you need to supply is the bolts for the cage plates. All tubing shown in the instructions is included – no extra cost for essential bracing!
Our kit was made on a factory YJ with a 1-1/2” body lift and boat sides and used standard Corbeau fixed back seats. If you have a larger body lift – remove it! If you have no-body lift some trimming of the frame mounts may be necessary. If you don’t have boat sides that’s fine it will still fit. If you have different seats we recommend you upgrade to a fixed back seat and utilize the harness bar and seat mounting tubes for optimum safety. Other seats can be made to work but might not work with the X bracing behind the seat. We highly recommend that your seats be mounted to your cage properly and not the factory floor that is likely rusting away or highly modified.
Main tubes are 1.75 x 0.120 wall DOM
Smaller tubing is 1.5 and 1.25 for gusseting.

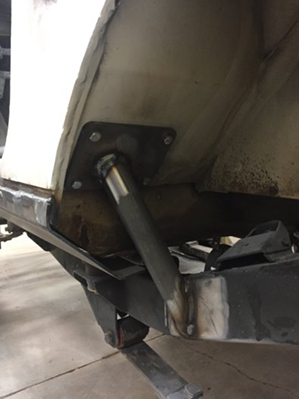

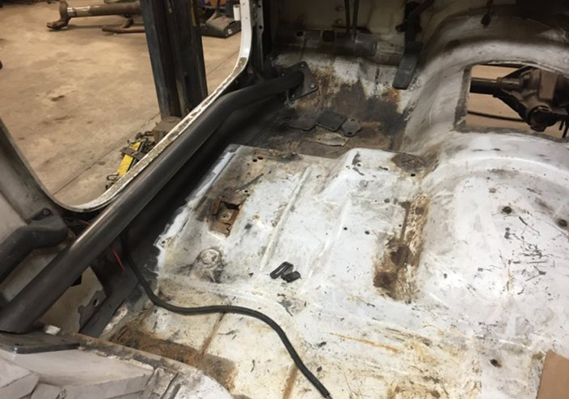

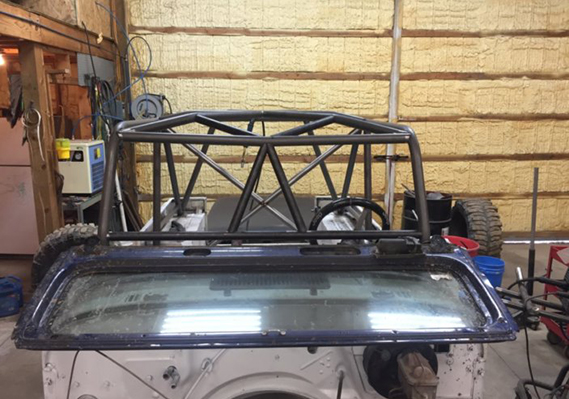

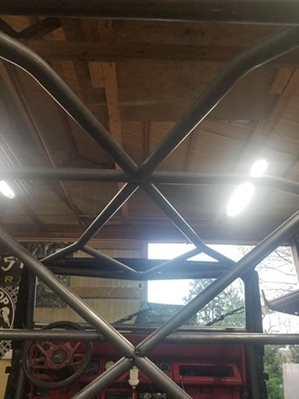

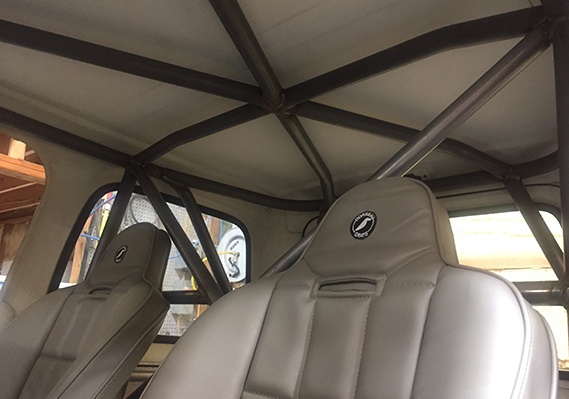

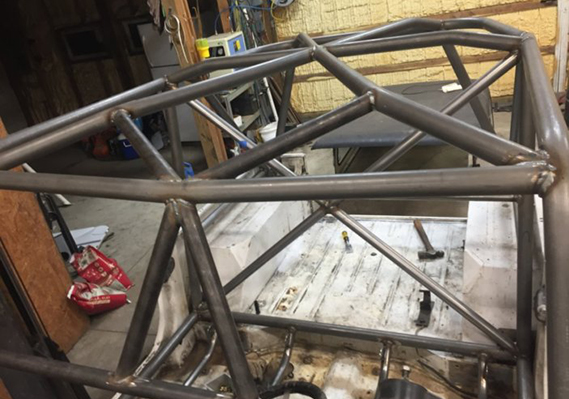

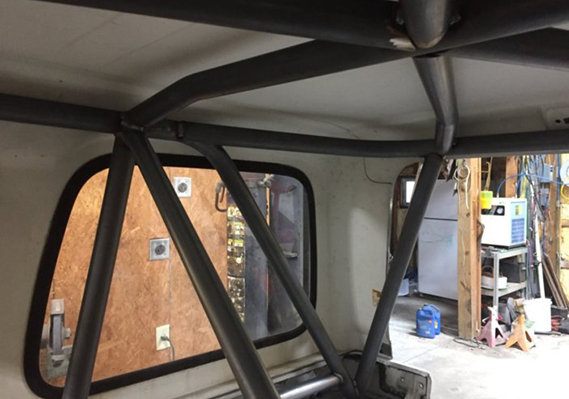

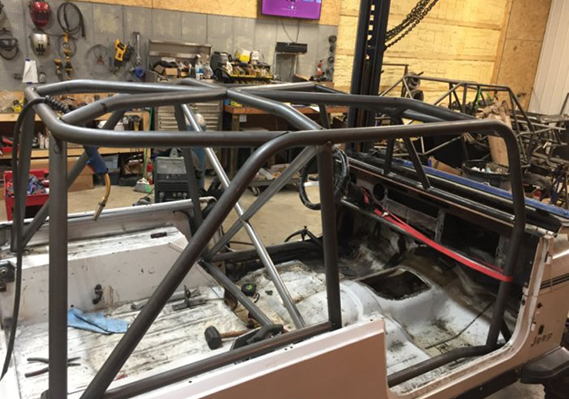

We have included an enormous amount of photos of our installation to help you with your installation but please read the instructions below and contact us with any
questions or concerns.
Jeep YJ Directions
